The NC.3-R1.RIFLON centrifugal multistage pump
Designed to operate in a stationary position powered by a tractor PTO.
Designed for agricultural use.
MULTISTAGE PUMPS
typesizes:
The NC.3-R1.RIFLON centrifugal multistage pump
The NC.3-R1.RIFLON centrifugal multistage pump is designed for:
- pumping water and other mechanically and chemically non-aggressive liquids;
- fire suppression systems;
- supplying water from a reservoir to irrigation machines, sprinklers, water cannons, etc.
The NC.3-76R1.RIFLON (4" x 3" x 12") centrifugal multistage pump
| Pumped fluid properties: | |
|---|---|
| Handled medium | Clear water |
| Hydraulic fluid density, kg/m3 | up to 1100 |
| Temperature, °C | +5 ... +55 |
| Technical specifications: | |
|---|---|
| Pump overall dimensions (LxWxH), mm | 765х485х445 |
| Upstream end diameter, mm | 100 (4") |
| Downstream end diameter, mm | 80 (3") |
| Impeller diameter, mm | 310 (12") |
| Maximal speed, rpm | 2100 |
| Connection type | ASME/ANSI B16,5 Class 150 |
| Weight, kg, ±3% | 150 |
| Maximal head, m | 165 |
| Maximal flow, m3/h (lps) | 170 (47,2) |
| Component materials: | |
| Impeller | AISI 420 |
| Wear rings | Bronze |
| Other components | AISI 5140 |
The NC.3-76R1.RIFLON centrifugal multistage pump manufactured by RIFLON - is a small and compact device for pumping relatively small volumes of water under high flow. This pump is specifically designed for agricultural use. Modern CNC equipment is used in the pump's production. Our centrifugal pumps can be used in a variety of industrial applications.
Operating specifications of NC.3 series centrifugal pumps
Pump modifications
| Type and size | Connection | Rotation |
|---|---|---|
| NC.3-76R1.RIFLON | Coupling | C.W |
| NC.3-76LR1.RIFLON | Coupling | C.C.W |
Additional parameters
| Name | Approach |
|---|---|
| Shaft seal type | Gland seal |
| Single mechanical seal (stuffing box is standard) | |
| Double mechanical seal (stuffing box is standard) | |
| Counter-flanges with a mounting kit and gaskets | |

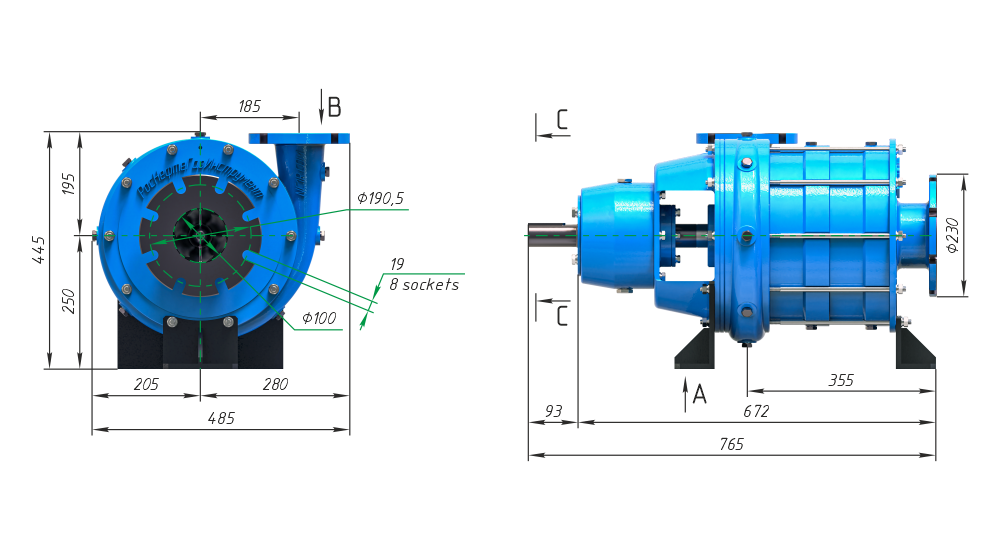

The NC.3-76R1.RIFLON (4"x3"x12") centrifugal multistage pump. Dimensions.
Figure 1.

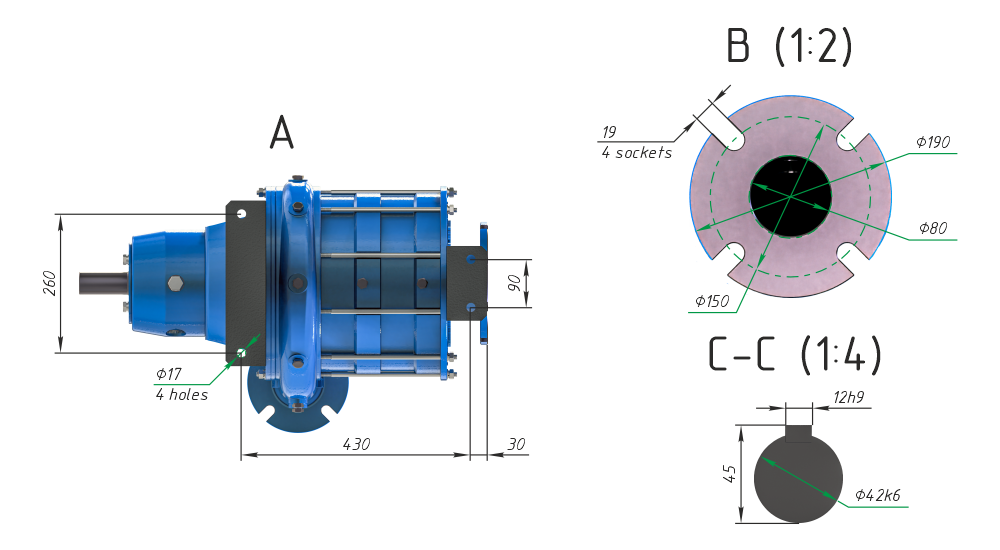

Figure 2.
The NC.3-127R1.RIFLON (6"х5"х14") centrifugal multistage pump
| Pumped fluid properties: | |
|---|---|
| Handled medium | Clear water |
| Hydraulic fluid density, kg/m3 | up to 1100 |
| Temperature, °C | +5 ... +55 |
| Technical specifications: | |
|---|---|
| Pump overall dimensions (LxWxH), mm | 890х610х540 |
| Upstream end diameter, mm | 150 (6") |
| Downstream end diameter, mm | 125 (5") |
| Impeller diameter, mm | 360 (14") |
| Maximal speed, rpm | 2100 |
| Connection type | ASME/ANSI B16,5 Class 150 |
| Weight, kg, ±3% | 225 |
| Maximal head, m | 190 |
| Maximal flow, m3/h (lps) | 330 (91,6) |
| Component materials: | |
| Impeller | AISI 420 |
| Wear rings | Bronze |
| Other components | AISI 5140 |
The NC.3-127R1.RIFLON centrifugal multistage pump manufactured by RIFLON is a small and compact device for pumping relatively small volumes of water under high flow. This pump is specifically designed for agricultural use. Modern CNC equipment is used in the pump's production. Our centrifugal pumps can be used in a variety of industrial applications.
Operating specifications of NC.3 series centrifugal pumps
Pump modifications
| Type and size | Connection | Rotation |
|---|---|---|
| NC.3-127R1.RIFLON | Coupling | C.W |
| NC.3-127LR1.RIFLON | Coupling | C.C.W |
Additional parameters
| Name | Approach |
|---|---|
| Shaft seal type | Gland seal |
| Single mechanical seal (stuffing box is standard) | |
| Double mechanical seal (stuffing box is standard) | |
| Counter-flanges with a mounting kit and gaskets | |

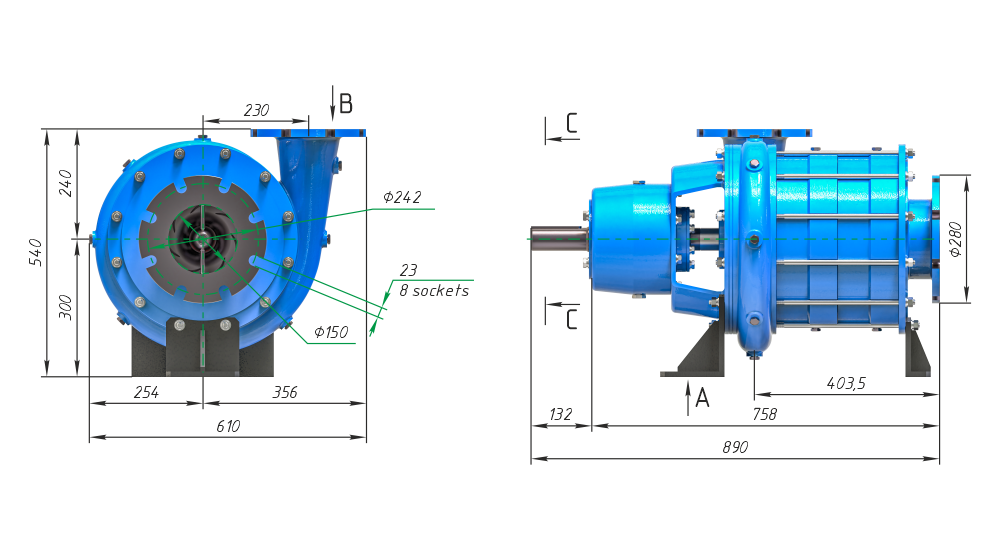

The NC.3-127R1.RIFLON (6"x5"x14") centrifugal multistage pump. Dimensions.
Figure 1.

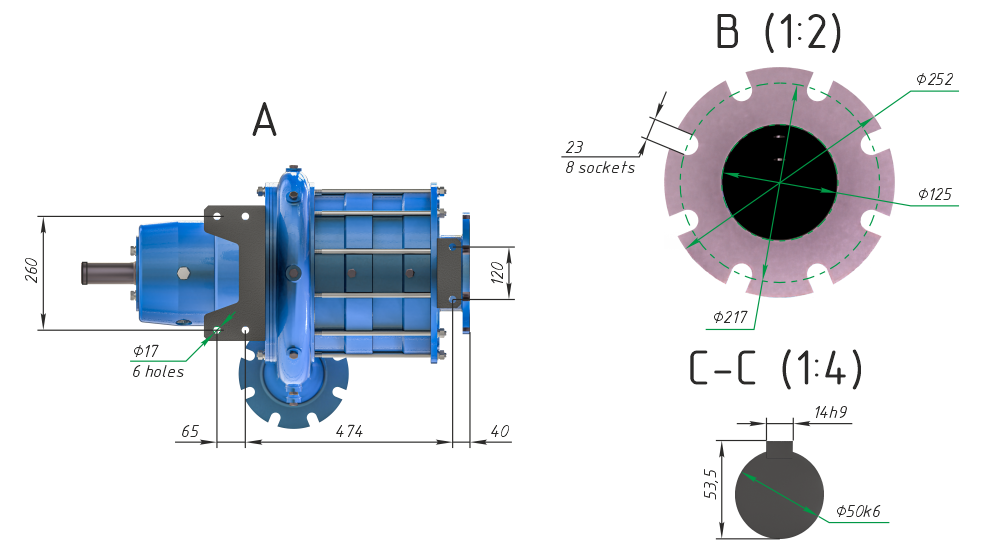

Figure 2.
